AT3
Product Service
P3-K平面同步带

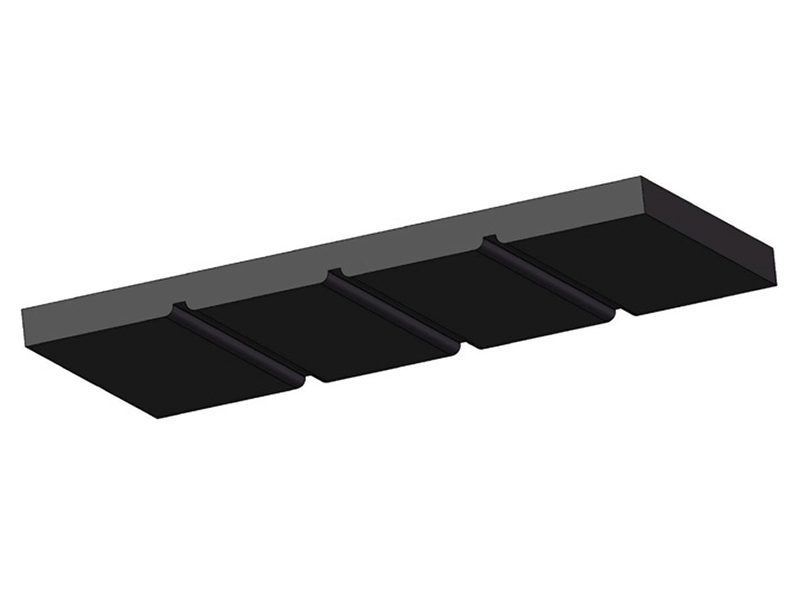

Thermoplastic polyurethane synchronous belt can be made into a circular shape by toothed connection.
The strength of the interface position is about 50% of the strength of the belt body.
The connecting belt can only be used for conveying equipment.
Additional NFT, NFB, PU, and APL roll materials can also be connected in a looped manner.
| STANDARD WIDTHS(mm) | 15 | 20 | 25 | 50 | 75 | 100 | |
| WEIGHT(g/m) | 102 | 136 | 170 | 340 | 510 | 680 | |
| MATERIAL | Thermoplastic Polyurethane | ||||||
| COLOR | Black | ||||||
| HARDNESS | 92 Shore A | ||||||
| BACK COVER | None | ||||||
| FABRIC | None | ||||||
| TENSION CORD | Kevlar | ||||||
| WIDTH TOLERANCE | ±0.2 mm | ||||||
| THICKNESS | 3.0 ± 0.2 mm | ||||||
| ROLL LENGTH | 100 m(Customizable) | ||||||
