AT3
Product Service
P1.5平面同步带

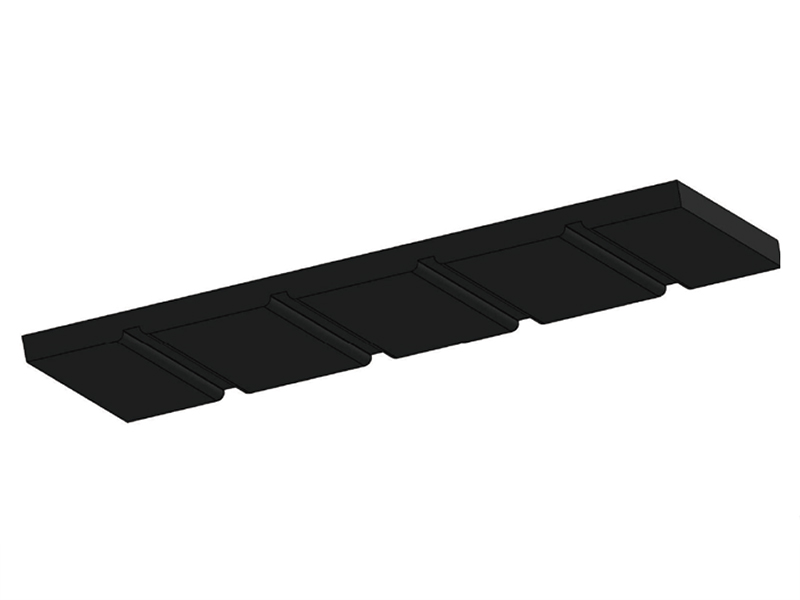

Thermoplastic polyurethane synchronous belt can be made into a circular shape by toothed connection.
The strength of the interface position is about 50% of the strength of the belt body.
The connecting belt can only be used for conveying equipment.
Additional NFT, NFB, PU, and APL roll materials can also be connected in a looped manner.
| STANDARD WIDTHS(mm) | 15 | 25 | 30 | 40 | 50 | 75 | 100 |
| WEIGHT(g/m) | 68 | 113 | 135 | 180 | 225 | 338 | 450 |
| MATERIAL | Thermoplastic Polyurethane | ||||||
| COLOR | Black | ||||||
| HARDNESS | 92 Shore A | ||||||
| BACK COVER | None | ||||||
| FABRIC | None | ||||||
| TENSION CORD | Galvanized Steel Wire Steel | ||||||
| WIDTH TOLERANCE | ±0.2 mm | ||||||
| THICKNESS | 1.5 ± 0.2 mm | ||||||
| ROLL LENGTH | 100 m(Customizable) | ||||||
