AT3
Product Service
T10-K13

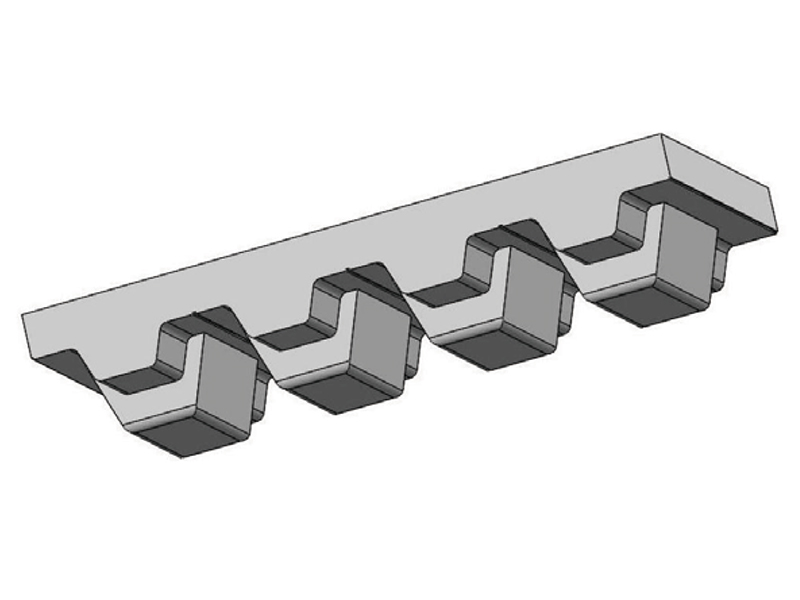

Thermoplastic polyurethane synchronous belt can be made into a circular shape by toothed connection.
The strength of the interface position is about 50% of the strength of the belt body.
The connecting belt can only be used for conveying equipment.
Additional NFT, NFB, PU, and APL roll materials can also be connected in a looped manner.
| STANDARD WIDTHS(mm) | 50 | 50 | 75 | 85 | 100 |
| WEIGHT(g/m) | 200 | 300 | 415 | 480 | 530 |
| MATERIAL | Thermoplastic Polyurethane | ||||
| COLOR | White | ||||
| HARDNESS | 92 Shore A | ||||
| BACK COVER | None | ||||
| FABRIC | None | ||||
| TENSION CORD | Galvanized Steel Wire Steel | ||||
| WIDTH TOLERANCE | ±0.5 mm | ||||
| THICKNESS | 4.5 ± 0.3 mm | ||||
| LENGTH TOLERANCE | ±0.5 mm/m | ||||
| ROLL LENGTH | 100 m(Customizable) | ||||
| PITCH | 10 mm | ||||
