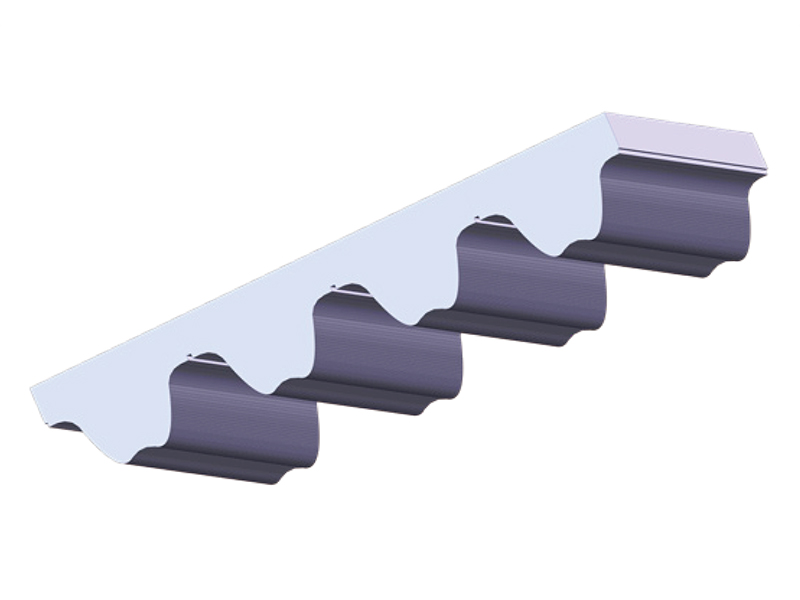

S3M
Thermoplastic polyurethane synchronous belt can be made into a circular shape by toothed connection.
The strength of the interface position is about 50% of the strength of the belt body.
The connecting belt can only be used for conveying equipment.
Additional NFT, NFB, PU, and APL roll materials can also be connected in a looped manner.
| STANDARD WIDTHS(mm) | 10 | 25 | 32 | 50 | 75 | 85 | 100 |
| WEIGHT(g/m) | 23 | 58 | 74 | 115 | 173 | 196 | 230 |
| MATERIAL | Thermoplastic Polyurethane | ||||||
| COLOR | White | ||||||
| HARDNESS | 92 Shore A | ||||||
| BACK COVER | None | ||||||
| FABRIC | None | ||||||
| TENSION CORD | Galvanized Steel Wire Steel | ||||||
| WIDTH TOLERANCE | ±0.3 mm | ||||||
| THICKNESS | 1.94 ± 0.15 mm | ||||||
| LENGTH TOLERANCE | ±0.5 mm/m | ||||||
| ROLL LENGTH | 100 m(Customizable) | ||||||
| PITCH | 3 mm | ||||||
